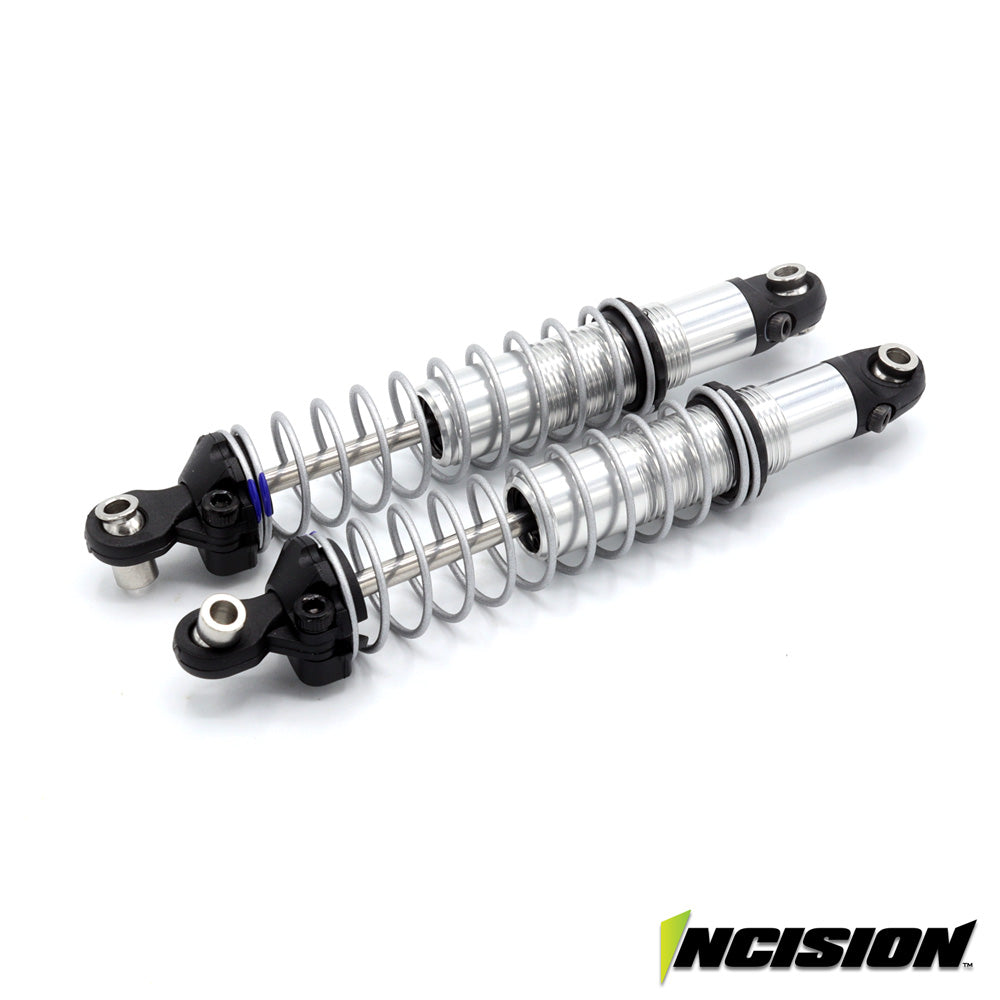

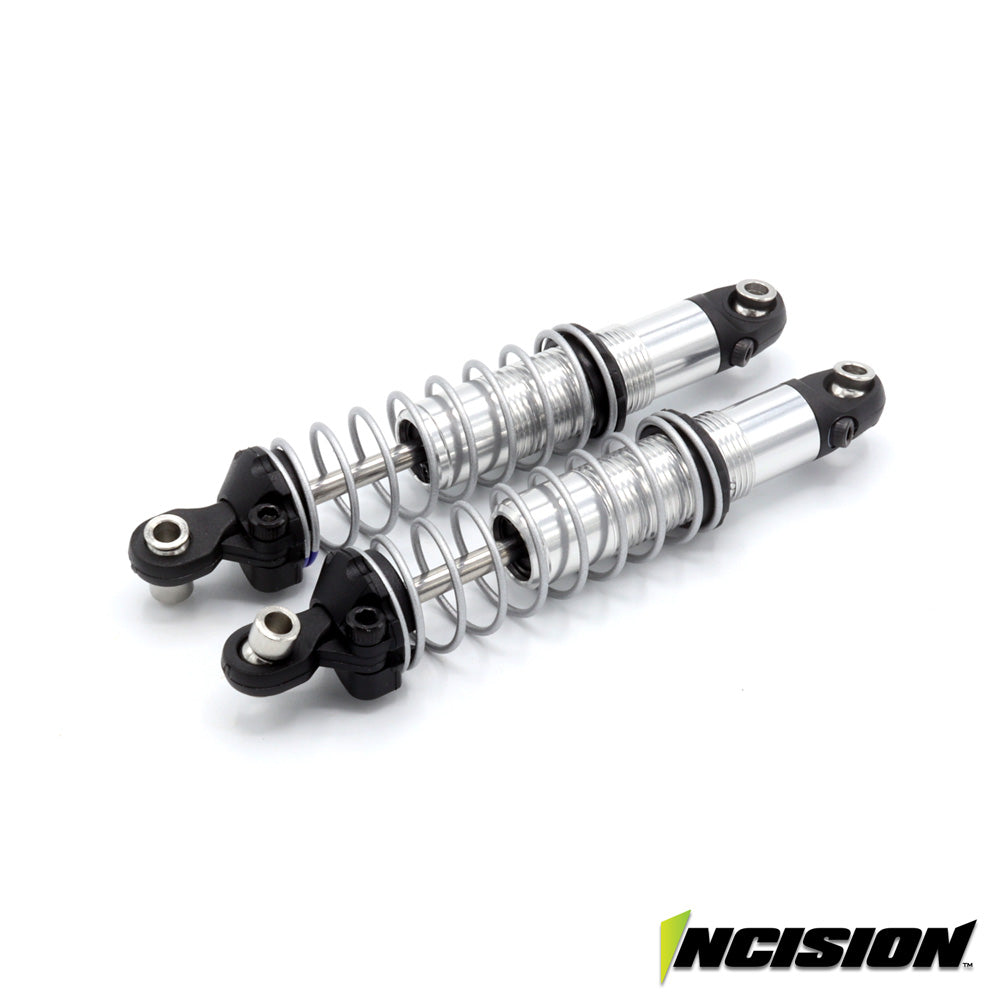

VANQUISH PRODUCTS INCISION S8E Scale Shock Set

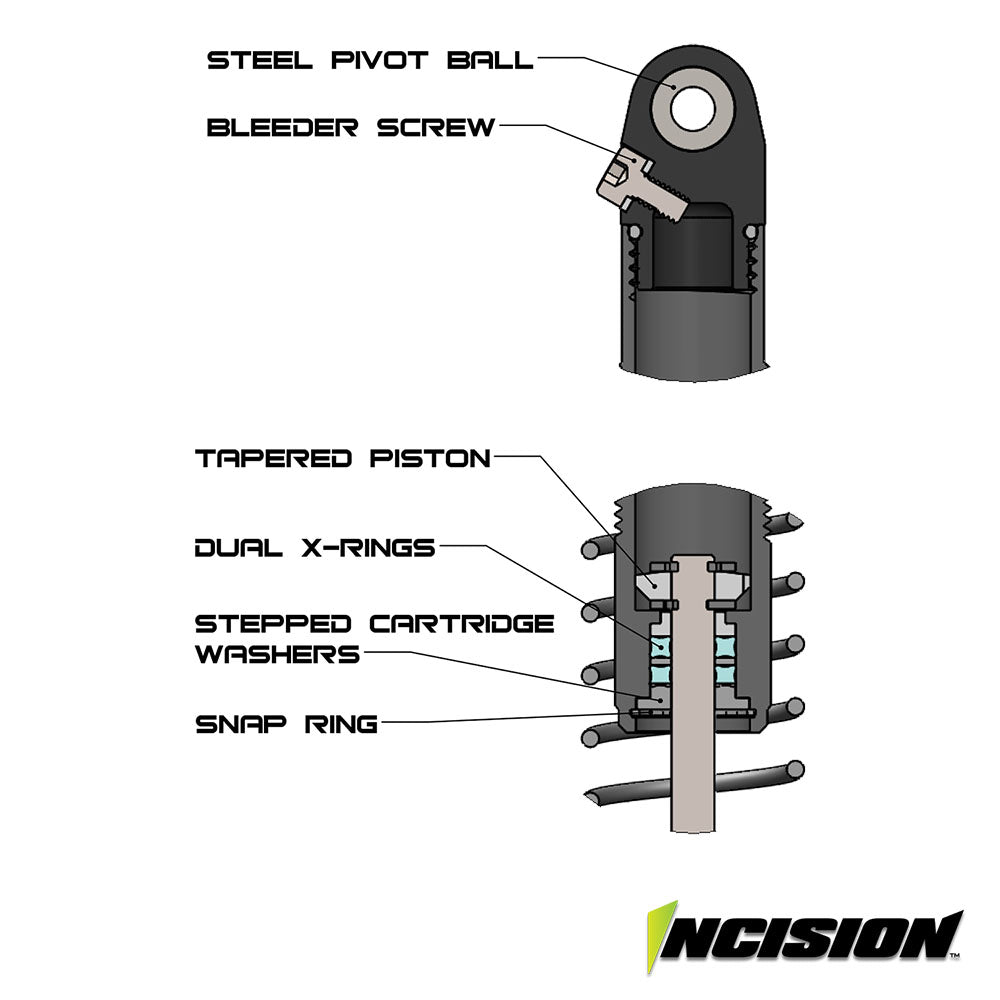

The Incision S8E Scale Shocks feature a larger 8mm bore for increased damping. The increased volume reduces internal shock pressures for longer seal life. Dual molded X-Ring lower shock cartridge provides more sealing surfaces than standard o-rings. Threaded shock bodies allow for a wide spring preload range. Offset lower shock pivot balls allow for greater flexibility for tuning shock angles.

• 8mm Bore Scale Shocks
• Machined Aluminum Threaded shock bodies
• Scale shock cap with steel pivot ball and bleeder screw
• Polished Shock shafts
• Dual X-Rings
• Optional spring rates available

Notes:

• Offset lower pivot ball included for Vanquish Products F10 axles. Standard width pivot ball required for other applications.
• Shock oil is not included
• Lower cartridge comes pre-assembled with internal snap rings.
• Recommended pliers for the lower cartridge snap ring are KNIPEX - 48 11 J0 Tools
